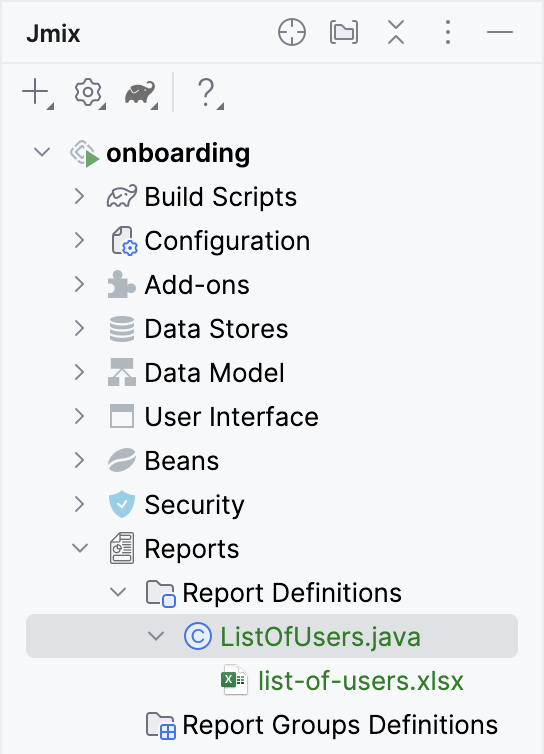

Getting Started with Reports

This section contains instructions about using reports wizard to create and run reports. For an easy start, the reports add-on comes with the reports wizard, which is a visual tool for quick report creation, including both data structure and template design.

Project Setup

Installing add-ons

First, create a new Jmix application and then follow the instruction to install the reports add-on and charts add-on.

Creating entities and screens

As an example, we will create a sample application Library with several simple entities. You can find source code of these entities on Github.

  1. Create Author entity containing the following fields:

    • firstName with String type.

    • lastName with String type.

  2. Create LiteratureType, Publisher, LibraryDepartment, and Town entities, each contains only the name field:

    • name with String type.

  3. Create Book entity containing the following fields:

    • name with String type.

    • summary with String type and unlimited length.

    • literatureType associated to LiteratureType entity with a many-to-one relationship.

    • authors associated to Author entity with a many-to-many relationship.

  4. Create BookPublication entity containing the following fields:

    • year with Integer type.

    • book associated to Book entity with a many-to-one relationship.

    • publisher associated to Publisher entity with a many-to-one relationship.

    • town associated to Town entity with a many-to-one relationship.

  5. Create BookInstance entity containing the following fields:

    • isReference with Boolean type.

    • inventoryNumber with Long type.

    • bookCount with Integer type.

    • bookPublication associated to BookPublication entity with a many-to-one relationship.

    • libraryDepartment associated to LibraryDepartment entity with a many-to-one relationship.

  6. For all the entities created above, create browser and editor screens for each of them.

Start the application then add some data for each of the entities. We will use these data for the next steps.

To run the wizard, click CreateUsing wizard in the Reports screen.

reports wizard main
Figure 1. Call the Report wizard

Three types of reports can be created using the wizard:

  1. Report for a single entity.

  2. Report for a list of given entities.

  3. Report for a list of entities filtered by query.

Report design is a three steps process:

  1. Creating a data structure of a report.

  2. Editing of report regions.

  3. Saving the report.

The created report can be modified in the usual manner using the report editor and run through the generic report browser or using special actions (ListPrintFormAction, EditorPrintFormAction, etc.).

Report for a Single Entity

Let us assume that we want to get information about the particular publication of a book, i.e. an instance of BookPublication entity.

First, run the reports wizard and specify the report details:

  • Entity – entity to be shown in the report – BookPublication.

  • Template type – report template format that defines the format of the output – DOCX. Note that XSLX, HTML, CSV and Chart formats are also available.

  • Report namePublication details.

Next, specify the report type: Report for single entity.

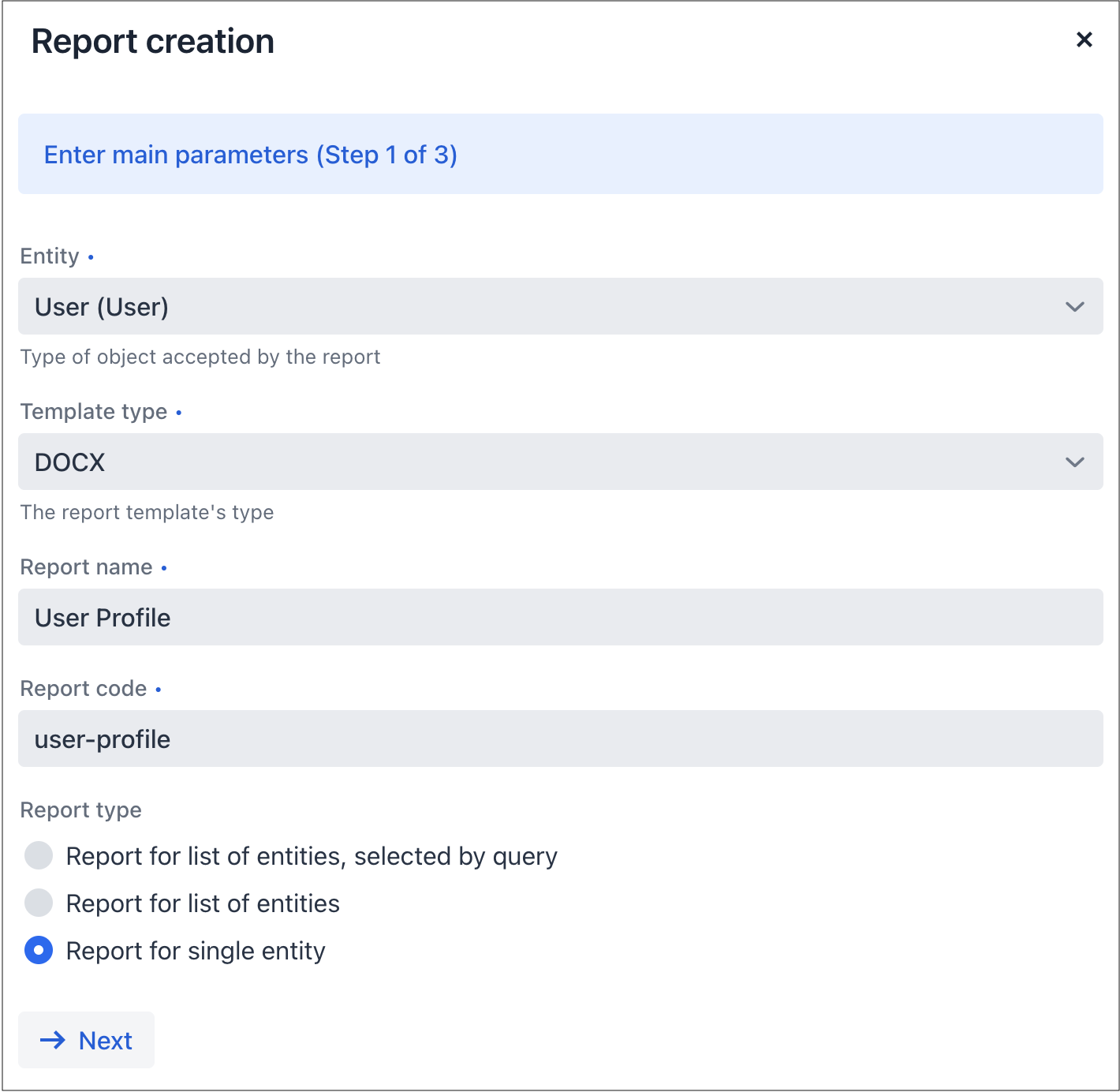

single entity step 1
Figure 2. Report for a Single Entity: step 1

Then click the Next button; the Select attributes for the simple report region window appears. Specify the attributes of the BookPublication entity and linked entities that should be reflected in the report (Publication.Book.Name, Publication.Publisher.Name, Publication.Year and Publication.Town.Name). In order to do this, select them in the left column and move them to the right clicking attributes selection arrow or by double-click.

The order of the attributes in the report will correspond to the order specified in the right-hand side list. To change the display order, move the attributes up and down by clicking attributes selection up/attributes selection down.

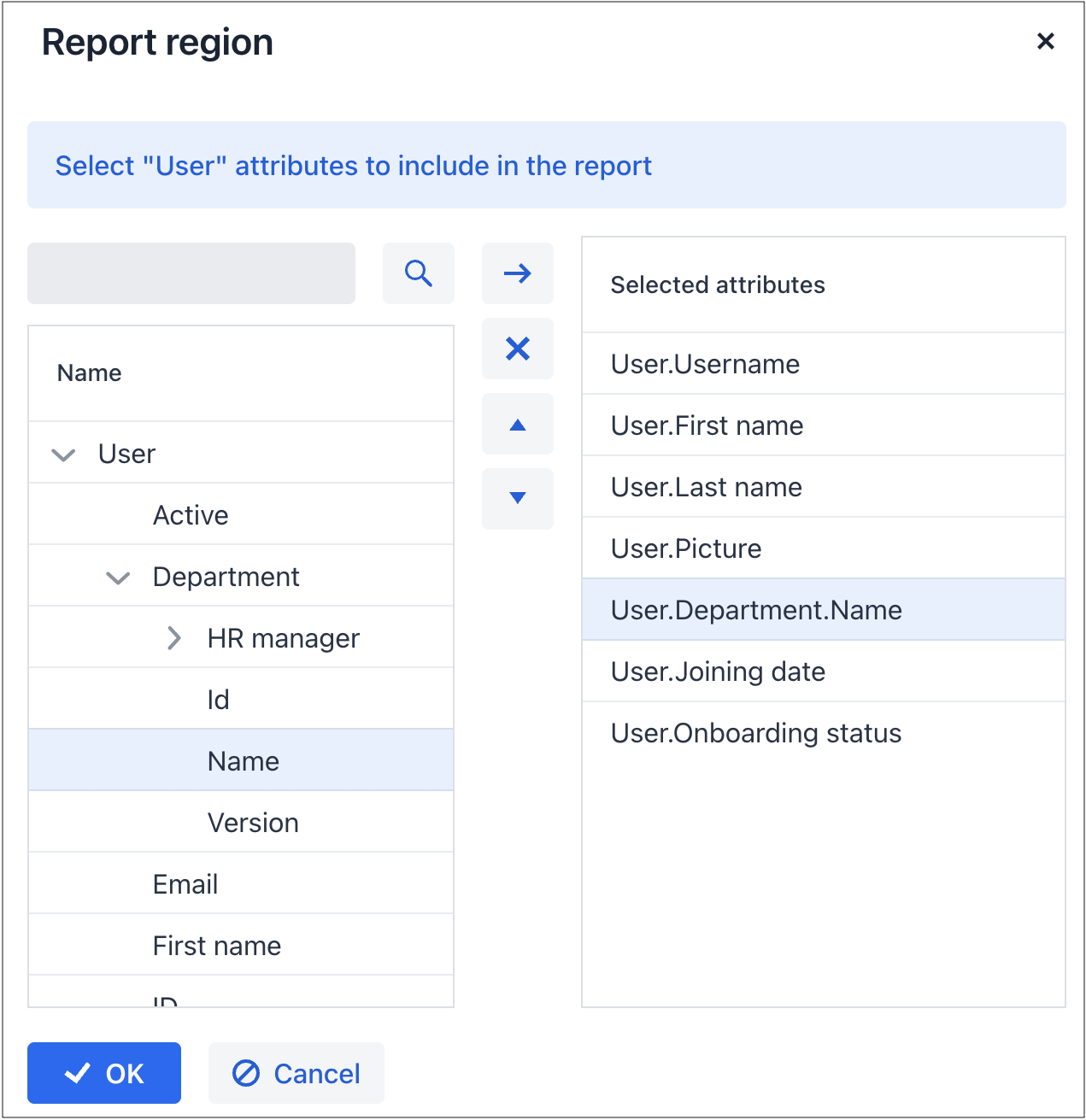

single entity attributes
Figure 3. Report for a Single Entity: select Entity Attributes

Click ОК to move to the second stage – report regions editing.

The appeared screen contains a list of named regions – bands that display related data. The wizard enables adding several plain-text regions to the template in order to display different data sets.

A set of entity attributes loaded to a particular region can be modified by clicking the link represented as the list of the selected attributes. You can also add a new region by clicking Add simple region.

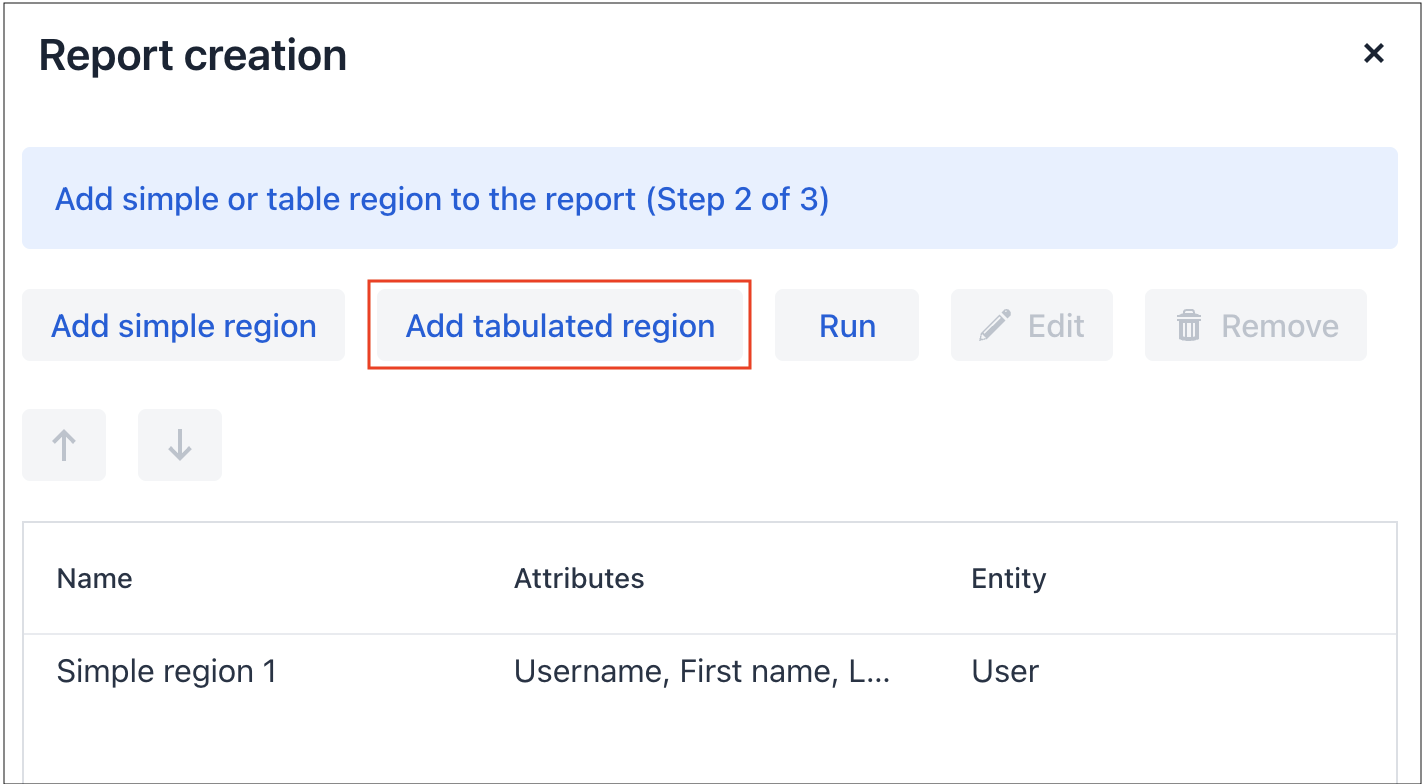

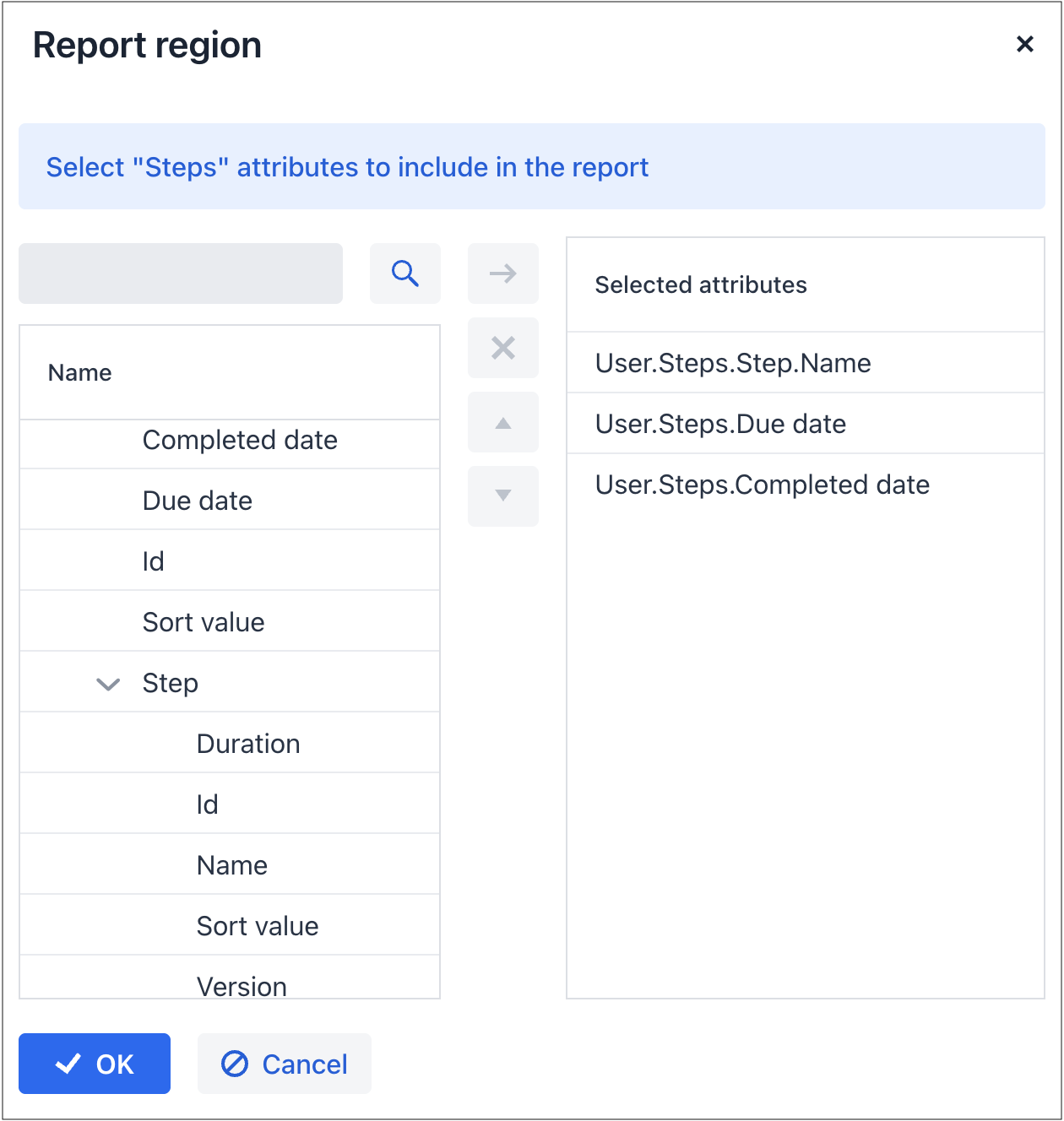

If the entity contains collection attributes, the Add tabulated region button will appear. It enables adding a region for tabular data display.

In both cases, the selection dialog will appear with a list of attributes of the BookPublication entity, allowing you to add or remove attributes from the set.

single entity step 2
Figure 4. Report for a Single Entity: step 2

At this stage, we already can run the report and see how the report looks. Click the Run button, pick the instance of BookPublication and see the result.

single entity test running
Figure 5. Test Run

When all report regions are configured you can move on to the third stage: saving the report. At this point, you can view the complete report template, or change the name and format of the output file to one of the available types.

single entity step 3
Figure 6. Report output type

After clicking the Save button, the standard report editor comes up. Now you can fine-tune the report in the usual manner. Once editing is complete, click Save and close in the report editor.

The report is now added to the General reports group in the reports browser, where you can run it from by clicking the Run button.

single entity reports list
Figure 7. Reports browser

Additionally, we can enable the report run on the publications browser. In order to do this, we will declare a standard ListPrintFormAction in the book-publication-browse.xml screen descriptor:

<actions>
    <!-- ... -->
    <action id="list" type="listPrintForm" caption="msg://printDetails"/> (1)
</actions>
<buttonsPanel id="buttonsPanel" alwaysVisible="true">
    <!-- ... -->
    <button id="list" action="bookPublicationsTable.list"/> (2)
</buttonsPanel>
1 - the type attribute defines a specific listPrintForm action type.
2 - add a button with run report action.

Then we should link our report with the BookPublication browser. Open the report editor, switch to the Roles and Screens tab and add the BookPublication.browse screen from the dropdown list to the table below:

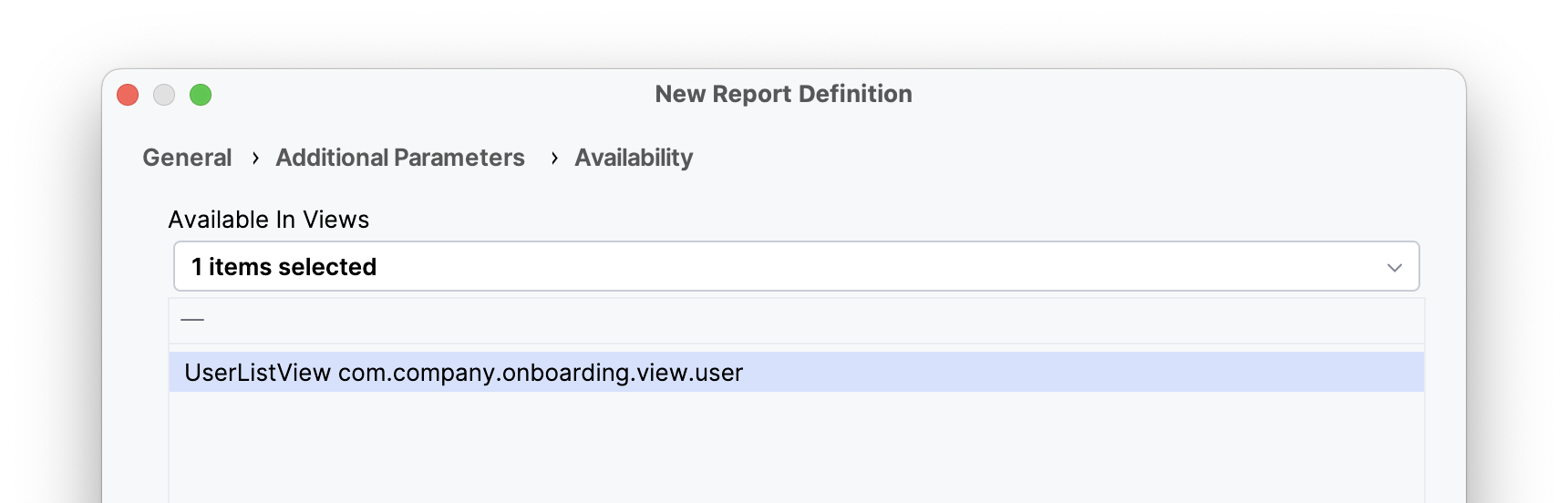

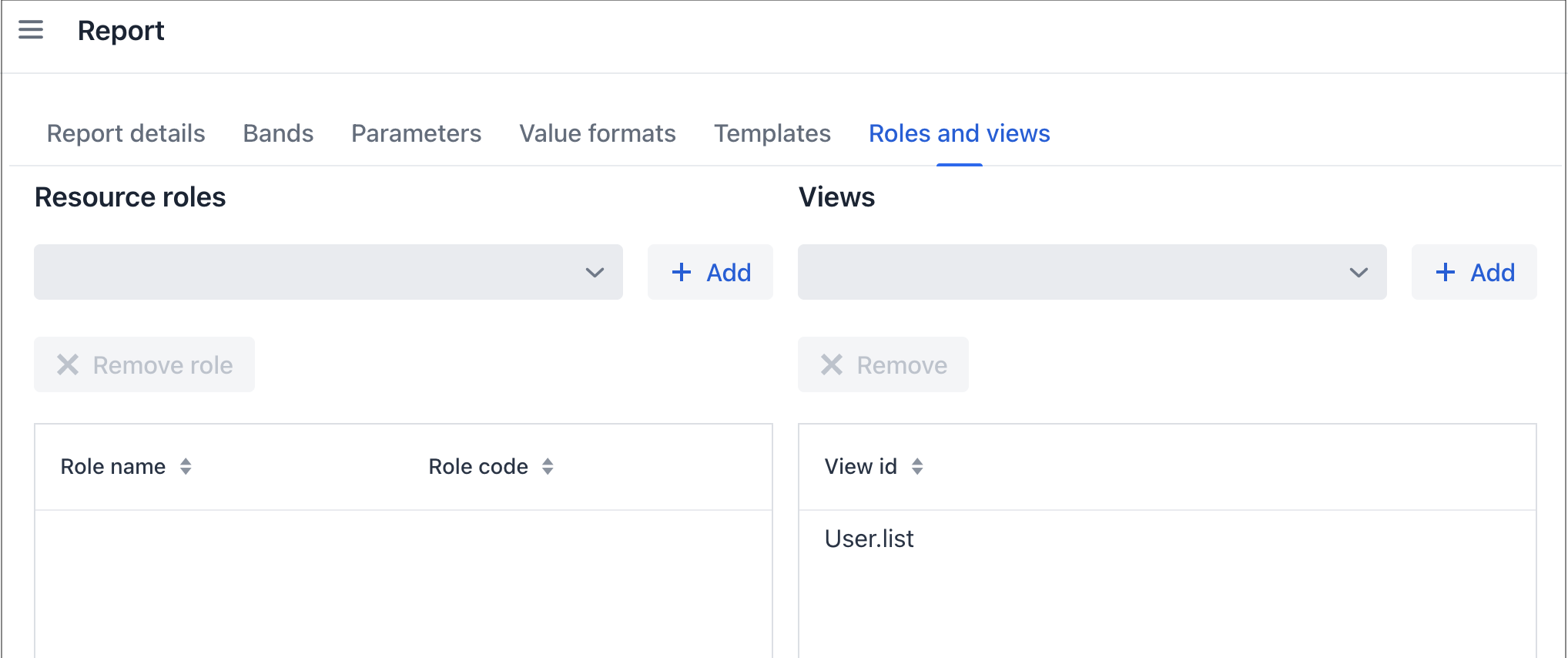

single entity screens
Figure 8. Add screen

Now you can run the report for any publication by selecting it in the table and simply clicking the Print details button.

single entity running
Figure 9. Print details

The output is as follows:

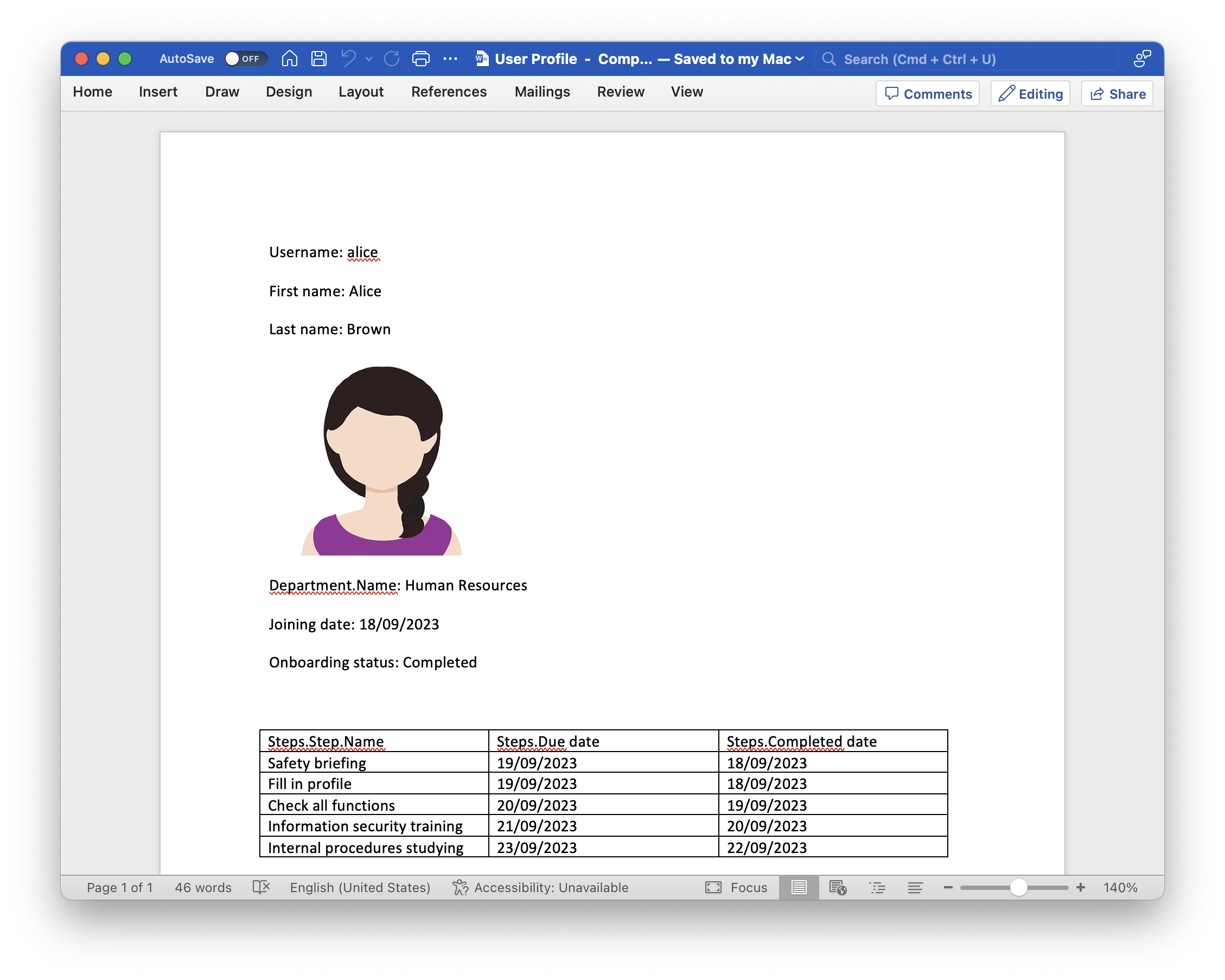

single entity result
Figure 10. Report result

Report for a List of Entities

The reports wizard allows you to create two types of reports for a list of entity instances:

  1. Report for manually selected instances of a particular entity

  2. Report for entity instances filtered by a certain request.

Let us have a look at the first report type. For instance, we want to obtain a list of all book instances in the library (BookInstance entity) with titles and library departments they belong to.

Click CreateUsing wizard in the Reports screen. Then, we specify the report details:

  • Entity – report entity – BookInstance.

  • Template type – output format – XSLX.

  • Report name – report name – Book items location.

After that, select the type of the report (Report for list of entities) and click Next.

list of entities step 1
Figure 11. Report for a List of Entities: step 1

As per the task, we select BookItem.Publication.Book.Name and BookItem.LibraryDepartment.Name in the attributes selection window.

list of entities attributes
Figure 12. Report for a List of Entities: select Entity Attributes

Click ОК and move to the second stage of report regions editing.

The report template for a list of entities restricted to have only one region that displays data in tabular form. Adding new regions is not allowed, but you can edit an existing set of data by clicking on the link with the list of attributes, or remove an existing region and recreate it.

In this case, we do not need to make any changes. Click NextSave to save the report. The report looks as follows in the report editor:

list of entities editor
Figure 13. Report data structure

Once the report is saved, you can run it through the generic report browser.

In addition, we can add a button to run the report from the book items browser, which can be opened by clicking the Show items button in the publications browser. In order to do this, we will set the multiselect attribute for the book instances table to true to be able to specify a set of records for the report and then declare a standard ListPrintFormAction:

<table id="bookInstancesTable"
       width="100%"
       dataContainer="bookInstancesDc"
       multiselect="true"> (1)
    <actions>
        <!-- ... -->
        <action id="list" type="listPrintForm" caption="msg://printList"/> (2)
    </actions>
    <buttonsPanel id="buttonsPanel"
                  alwaysVisible="true">
        <!-- ... -->
        <button id="listBtn" action="bookInstancesTable.list"/> (3)
    </buttonsPanel>
1 - use multiselect mode.
2 - the type attribute defines a specific listPrintForm action type.
3 - add a button with run report action.

Then we should link the Book items location report with the book items browser. Open the report editor, switch to the Roles and Screens tab and add the library$BookInstance.browse screen from the screens dropdown to the table below:

list of entities screens
Figure 14. Add screen

Now the report can be run from the book items browser. In the BookInstances browser screen select items for the report in the table and click the Print list button. Print selected option exports the selected items, Print all option prints all instances selected by the current filter.

list of entities running
Figure 15. Print selected

The output is as follows:

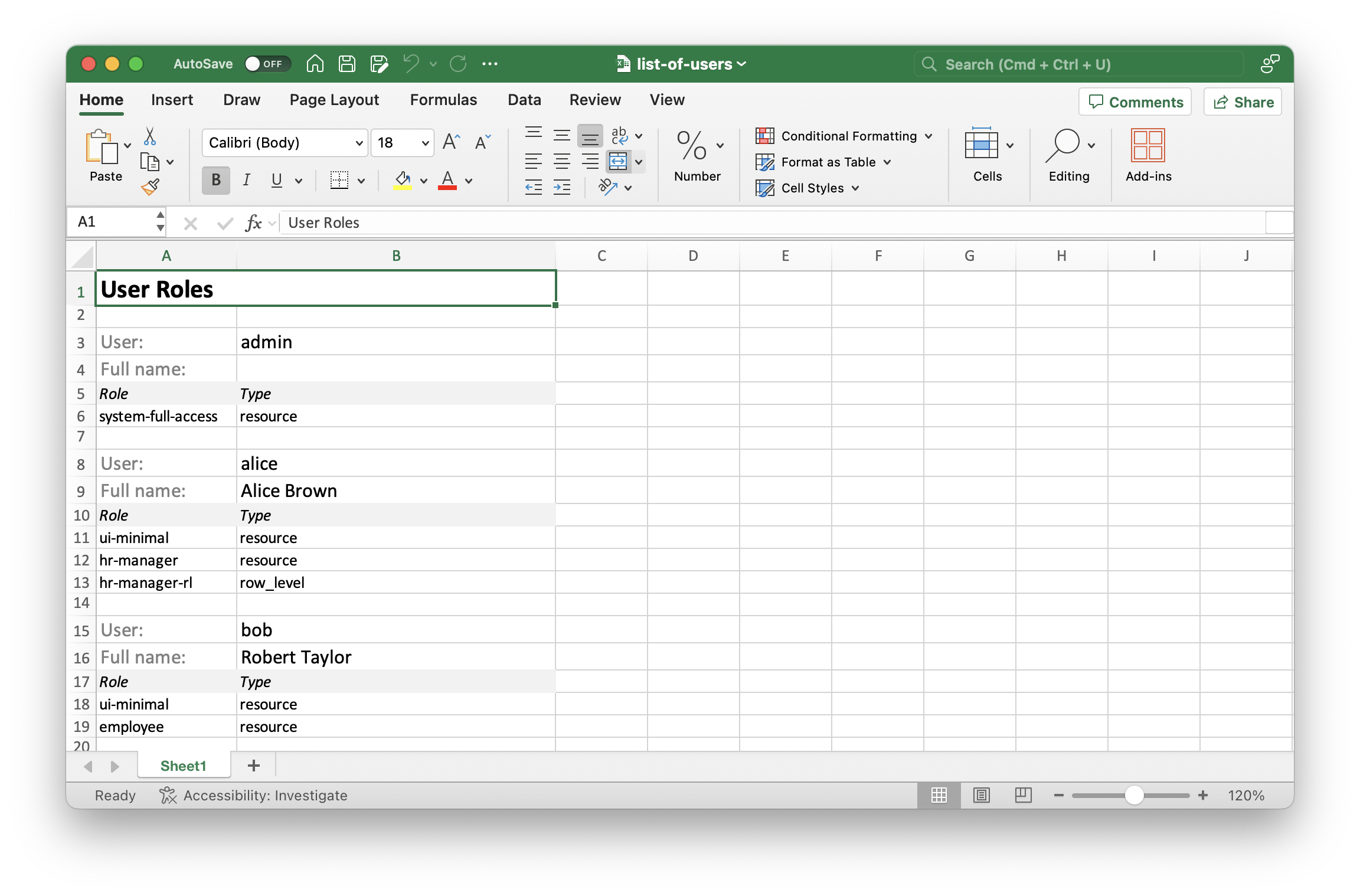

list of entities result
Figure 16. Report result

Report for a List of Entities Filtered by Query

Now let’s have a look at the last report type suggested by the wizard: the report for a list of entities filtered by a query. To demonstrate this use case, we will complicate the previous example. As before, the report will contain a list of books (with their titles and department names), but only added after a certain date.

Click CreateUsing wizard in the Reports screen. Like in the previous case:

  • Entity – report entity – BookInstance.

  • Template type – output file format – XSLX.

  • Report nameRecently added book items.

Then select the Report for list of entities, selected by query report type.

query step 1
Figure 17. Report for a List of Entities Filtered by Query: step 1

Click Next and move to BookInstance attributes selection. We move BookItem.Publication.Book.Name and BookItem.LibraryDepartment.Name attributes to the right. Click OK to move on to accomplish the first stage.

list of entities attributes
Figure 18. Select Entity Attributes

The report template for a list of entities restricted to have only one region that displays data in tabular form. Adding new regions is not allowed, but you can edit an existing set of data by clicking on the link with the list of attributes, or remove an existing region and recreate it.

In this case, we do not need to make any changes. Click Next.

query step 2
Figure 19. Report regions

Now JPQL Query window will show. In the Query field, it displays the auto-generated JPQL based on the entity and the attributes we selected in step 1.

To add a query condition, you can directly add it in the Query field or by clicking the Create button. For example, we added a condition where e.createdDate >= :createDt in the Query field, then click the Generate button to generate parameters.

query step 3
Figure 20. Report query settings

Alternatively, you can click the Create button to add the parameter, then modify the JPQL query to use the parameter:

query create parameter
Figure 21. Create query parameter

After setting JPQL query and parameters, click Next. Then in below Save report window, click Save.

query step 4
Figure 22. Save report

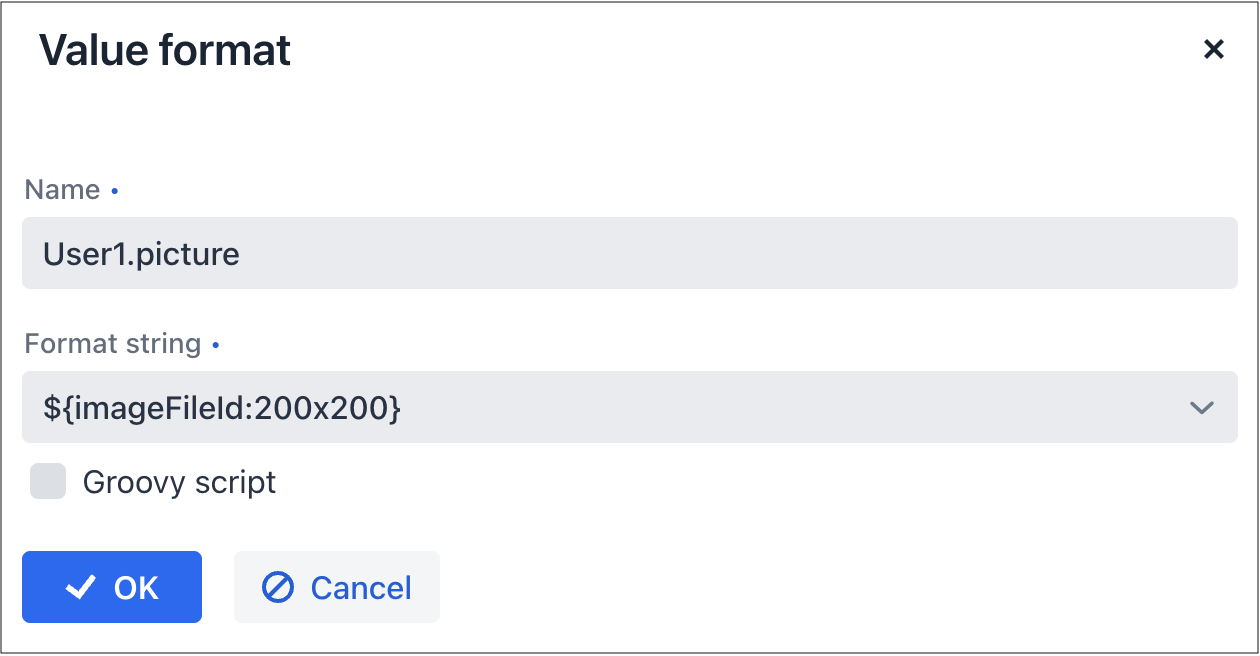

The editor enables making the report structure more sophisticated by adding new bands and data sets, as well as configuring the report template design, localization, access rights.

For instance, we can switch to Parameters and Formats tab and modify the query parameter in the Parameters list: Create After instead of the standard CreateDt. Save the changes and close the report editor.

query parameter rename
Figure 23. Parameters and Formats tab

After all steps, let us add the Run report button that runs the report right from the library departments browser.

In order to do this, we need to define a new RunReportAction standard action and a button for it in the library-department-browse.xml screen descriptor:

<actions>
    <!-- ... -->
    <action id="run" type="runReport"/> (1)
</actions>
<buttonsPanel id="buttonsPanel"
              alwaysVisible="true">
    <!-- ... -->
    <button id="runReportBtn" action="libraryDepartmentsTable.run" caption="Run Report"/> (2)
</buttonsPanel>
1 - the type attribute defines a specific runReport action type.
2 - add a button with run report action.

For each report, add LibraryDepartment.browse to the screens list on the Roles and Screens tab of the report editor, as we did in the previous examples.

The Run report button will appear in the library departments browser, displaying the list of all reports available in the system in one click. In order to run the report, select Recently added book items in the list, specify the date and click Run report.

query running
Figure 24. Run report

The output is as follows:

query result
Figure 25. Report result

Report with Chart Output

Using the report wizard, you can create reports with chart output in the same way as any other report types. The only difference is that you will need to configure the chart template after finishing the report in the wizard.

  1. Start creating a report as described in the previous chapters, but we select Chart as template type.

    chart wizard
    Figure 26. Chart Template in Wizard – Step 1
  2. For the chart report, select countable entity attributes – they will be later used for the value axis.

    chart wizard 2
    Figure 27. Chart Template in Wizard – Select Attributes
  3. Complete the next step of the report creation.

    chart wizard 3
    Figure 28. Chart Template in Wizard – Step 2
  4. At the last step, select the chart type – either Pie or Serial – and save the report.

    chart wizard 4
    Figure 29. Chart Template in Wizard – Step 3
  5. Finally, configure the chart axis on the Templates tab of the report editor.

    chart wizard 5
    Figure 30. Chart Template Configuration

Then, you can run the report in the generic report browser. For more information about chart templates, please refer to template documentation.
