sidePanelLayout

A layout component that adds a panel can open from different sides and either overlay the main content or push it aside. Use it for contextual information, filters, or editors that need to appear alongside the primary content.

A side panel can be also created programmatically using Side Dialog.

XML Element

sidePanelLayout

Java Class

SidePanelLayout

Attributes

General: id - modal - closeOnOutsideClick - displayAsOverlayOnSmallDevices - visible

Position: alignSelf - justifySelf - colspan

Size: sidePanelHorizontalSize - sidePanelHorizontalMinSize - sidePanelHorizontalMaxSize - sidePanelVerticalSize - sidePanelVerticalMinSize - sidePanelVerticalMaxSize - height - width - maxHeight - maxWidth - minHeight - minWidth

Look & Feel: css - sidePanelOverlay - sidePanelPosition

Other: closeOnOutsideClick - displayAsOverlayOnSmallDevices - modal - overlayAriaLabel

Handlers

AttachEvent - DetachEvent - ModalityCurtainClickEvent - SidePanelBeforeOpenEvent - SidePanelAfterOpenEvent - SidePanelCloseEvent

Basics

SidePanelLayout divides the content into two areas:

  • Main content – the primary layout area.

  • Side panel content – a panel that slides in from one side.

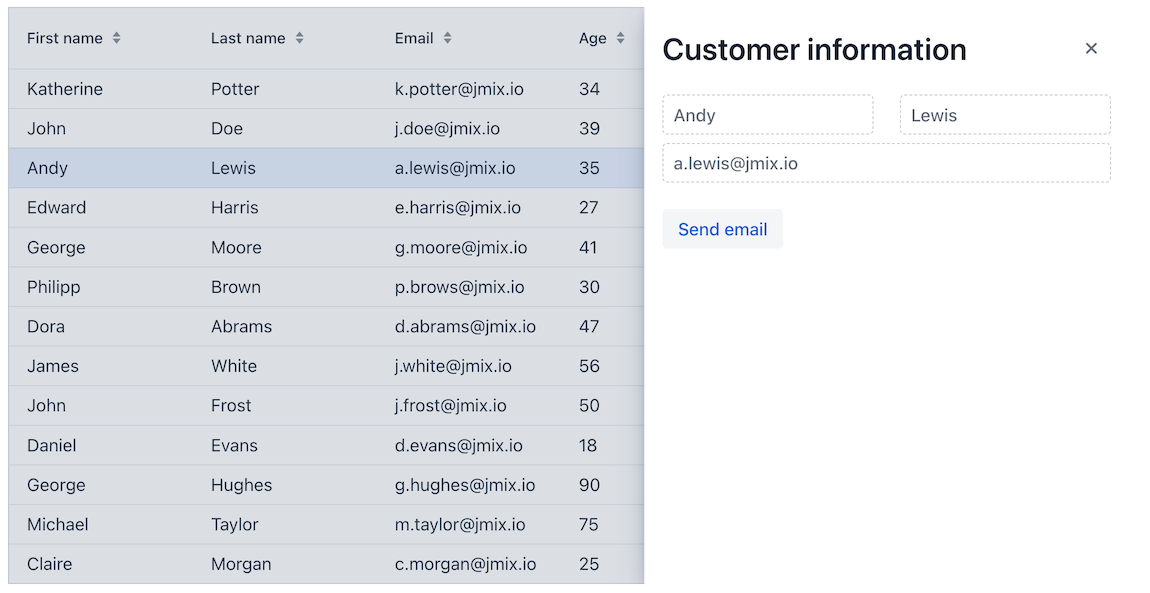

side panel layout basic

To define the component in XML, use the sidePanelLayout element and provide two root elements.

        <sidePanelLayout id="sidePanelLayout"
                         width="100%"
                         height="100%">

            <vbox id="contentBox">
                <!-- Main content -->
            </vbox>

            <vbox id="sidePanelBox" width="100%" height="100%">

                <hbox id="headerBox" width="100%"> (1)
                    <h2 text="Customer information"/>
                    <sidePanelLayoutCloser/>
                </hbox>

                <!-- Side panel content -->

            </vbox>
        </sidePanelLayout>
1 A side panel typically includes a close button. Use the dedicated sidePanelLayoutCloser component to add that button.

Opening the Side Panel

The side panel opens in response to user actions such as clicking a button. Call the toggleSidePanel() method:

    @ViewComponent
    private SidePanelLayout sidePanelLayout;

    @Subscribe(id = "toggleButton", subject = "clickListener")
    public void onToggleButtonClick(final ClickEvent<JmixButton> event) {
        sidePanelLayout.toggleSidePanel();
    }

Side Panel Editor

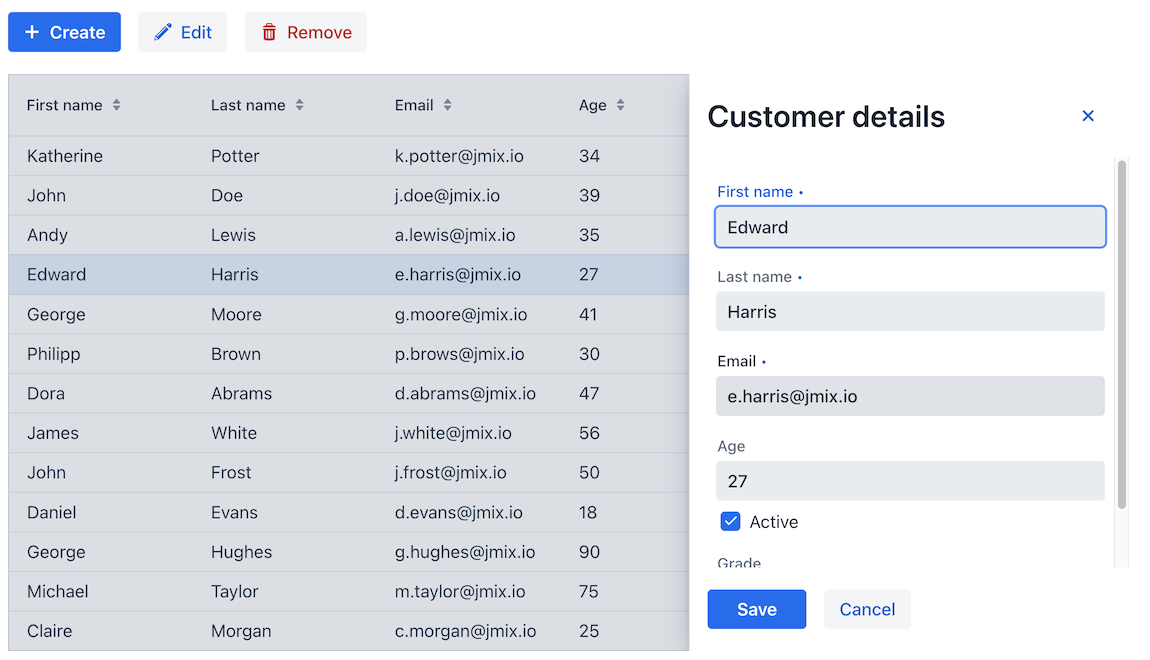

Use SidePanelLayout for master-detail pattern where the main area contains a list of entities and the side panel is used for editing a selected instance.

side panel layout editor

Styling

You can customize the appearance and size of SidePanelLayout using CSS variables and theme selectors.

Sizing with CSS Variables

The following variables define the side panel size. They are applied globally to all SidePanelLayout instances.

Values set in XML or using the Java API override CSS variables.

Horizontal side panels (LEFT, RIGHT, INLINE_START, INLINE_END):

Variable

Description

Default

--jmix-side-panel-layout-horizontal-size

Preferred width of the side panel.

auto

--jmix-side-panel-layout-horizontal-max-size

Maximum width.

50%

--jmix-side-panel-layout-horizontal-min-size

Minimum width.

14em

Vertical side panels (TOP, BOTTOM):

Variable

Description

Default

--jmix-side-panel-layout-vertical-size

Preferred height of the side panel.

auto

--jmix-side-panel-layout-vertical-max-size

Maximum height.

50%

--jmix-side-panel-layout-vertical-min-size

Minimum height.

10em

Appearance

Variable

Description

Default

--jmix-side-panel-layout-transition-duration

Controls how long the open and close animation takes.

200ms

Parts

SidePanelLayout exposes the following stylable parts:

Part

Description

jmix-side-panel-layout::part(layout)

Container for content, side panel, and modality curtain.

jmix-side-panel-layout::part(content)

Main layout content.

jmix-side-panel-layout::part(modalityCurtain)

Modality curtain.

jmix-side-panel-layout::part(sidePanelContent)

Side panel content container.

States

The component exposes the following states:

State

Description

jmix-side-panel-layout[side-panel-opened]

Applied when the side panel is open

jmix-side-panel-layout[modal]

Applied when the side panel is modal

jmix-side-panel-layout[side-panel-position='left']

Matches the current side panel position (right, top, etc.)

jmix-side-panel-layout[side-panel-overlay]

Applied when the panel overlays content instead of pushing it

Attributes

Common attributes serve the same purpose for all components. The following attributes are specific to sidePanelLayout.

Name

Description

Default

sidePanelPosition

Defines the side from which the panel appears. Possible values are LEFT, RIGHT, TOP, BOTTOM, INLINE_START, and INLINE_END.

INLINE_START and INLINE_END follow the reading direction of the page (LTR or RTL).

RIGHT

sidePanelOverlay

Determines how the side panel interacts with the main content.

If true, the panel overlays the content without changing its layout. If false, the panel pushes the content aside as it opens.

true

modal

When true a modality curtain appears behind the side panel and prevents interaction with the main content until the panel is closed.

true

closeOnOutsideClick

When true, clicking the modality curtain closes the side panel.

This attribute only has an effect when modal is enabled.

true

overlayAriaLabel

Sets the accessible label for the overlay element.

–

displayAsOverlayOnSmallDevices

If true, the side panel is displayed as a full-screen overlay on small devices, ensuring that the content remains usable on mobile layouts.

true

sidePanelHorizontalSize

Defines the horizontal size of the side panel when it is positioned on the left or right side of the layout.

The value can be any valid CSS size such as 400px, 30%, or auto.

auto

sidePanelHorizontalMinSize

Defines the minimum horizontal size of the side panel when it is positioned on the left or right side.

–

sidePanelHorizontalMaxSize

Defines the maximum horizontal size of the side panel when it is positioned on the left or right side.

–

sidePanelVerticalSize

Defines the vertical size of the side panel when it appears from the top or bottom.

auto

sidePanelVerticalMinSize

Defines the minimum vertical size of the side panel.

–

sidePanelVerticalMaxSize

Defines the maximum vertical size of the side panel.

–

Handlers

Common handlers are configured in the same way for all components. The following handlers are specific to sidePanelLayout.

Name

Description

ModalityCurtainClickEvent

Fired when the user clicks on the modality curtain.

SidePanelBeforeOpenEvent

Fired before the side panel is opened, before it is displayed and before the opening animation starts. Use this event to update the side panel content before it becomes visible.

SidePanelAfterOpenEvent

Fired after the side panel is fully opened and the opening animation is finished.

SidePanelCloseEvent

Fired when the side panel is closed.
