Configuring Charts

Each chart type has its own set of attributes and methods, which replicate the functionality of the corresponding charts from the AmCharts library. Details of the properties and methods of the charts are available in the documentation.

Any configuration attribute can be set to null. In this case, the system will use the default value (except for the cases specified in the AmCharts documentation).

Messages used for displaying charts can be overridden or localized in the message bundle.

Declarative Configuration

The elements described below can be used for declarative configuration of all types of charts.

allLabels

This element contains the label elements with the label text and its properties. Labels can be placed on a certain position on the chart, for example:

all labels
chart:allLabels
<chart:allLabels>
    <chart:label x="300"
                 y="1000"
                 text="You can place a label at any position on the chart"
                 color="DARKBLUE"
                 rotation="-10"
                 align="CENTER"
                 size="14"/>
</chart:allLabels>

balloon

This element sets the configurations of balloons (tooltips) of the chart that follow the mouse cursor when you roll-over the data items. For example:

balloon
chart:balloon
<chart:graphs>
    <chart:graph balloonText="[[category]]: [[value]] m/s"
                 bullet="ROUND"
                 fillAlphas="0.3"
                 valueField="value"/>
</chart:graphs>
<chart:balloon adjustBorderColor="false"
               color="WHITE"
               horizontalPadding="10"
               verticalPadding="8"/>

The balloon text is defined by the balloonText attribute of each chart graph.

Interpolation of chart data is available for all fields used in the chart, such as titleField, valueField, category, value, description, percents, open, and so on, as well as HTML tags.

You can also fetch more entity attributes from the data provider using the additionalFields attribute. This attribute allows you to add the passed entity attributes to the chart query and send the extracted data to the UI so that you can use the entity attribute names directly in the chart configuration.

In the example below, title is the graph title, category is the value on the category axis, value is the value on the value axis, and additional is the IncomeExpenses entity attribute fetched to be interpolated in the balloonText:

add field
additionalFields
<chart:serialChart additionalFields="additional"
                   addClassNames="true"
                   autoMargins="false"
                   categoryField="year"
                   dataContainer="incomeExpensesDc"
                   height="100%"
                   marginLeft="50"
                   marginRight="10"
                   marginTop="10"
                   startDuration="1"
                   theme="LIGHT"
                   width="90%">
    <chart:balloon adjustBorderColor="false"
                   color="WHITE"
                   horizontalPadding="10"
                   verticalPadding="8"/>
    <chart:graphs>
        <chart:graph alphaField="alpha"
                     balloonText="&lt;span style='font-size:12px;'&gt;[[title]] in [[category]]:&lt;br&gt;
                     &lt;span style='font-size:20px;'&gt;[[value]]&lt;/span&gt; [[additional]]&lt;/span&gt;"
                     dashLengthField="dashLengthColumn"
                     title="Income"
                     type="COLUMN"
                     valueField="income"/>
    </chart:graphs>

You can add a list of fields declaratively as a comma-separated string:

<chart:serialChart id="serialChart"
                   additionalFields="income,year"
                   <...>
                   />
<...>
</chart:serialChart>

or programmatically in the screen controller:

@Autowired
private SerialChart serialChart;

@Subscribe
public void onInit(InitEvent event) {
    List<String> fields = Arrays.asList("income", "year");
    serialChart.setAdditionalFields(fields);
}

chartScrollbar

This element is available for SerialChart and XYChart.

  • You can set the concrete graph to zoom by the scrollbar, for example:

    scrollbar
    chart:chartScrollbar
    <chart:chartScrollbar autoGridCount="true"
                          backgroundAlpha="0"
                          color="#AAAAAA"
                          graph="g1"
                          offset="30"
                          oppositeAxis="false"/>

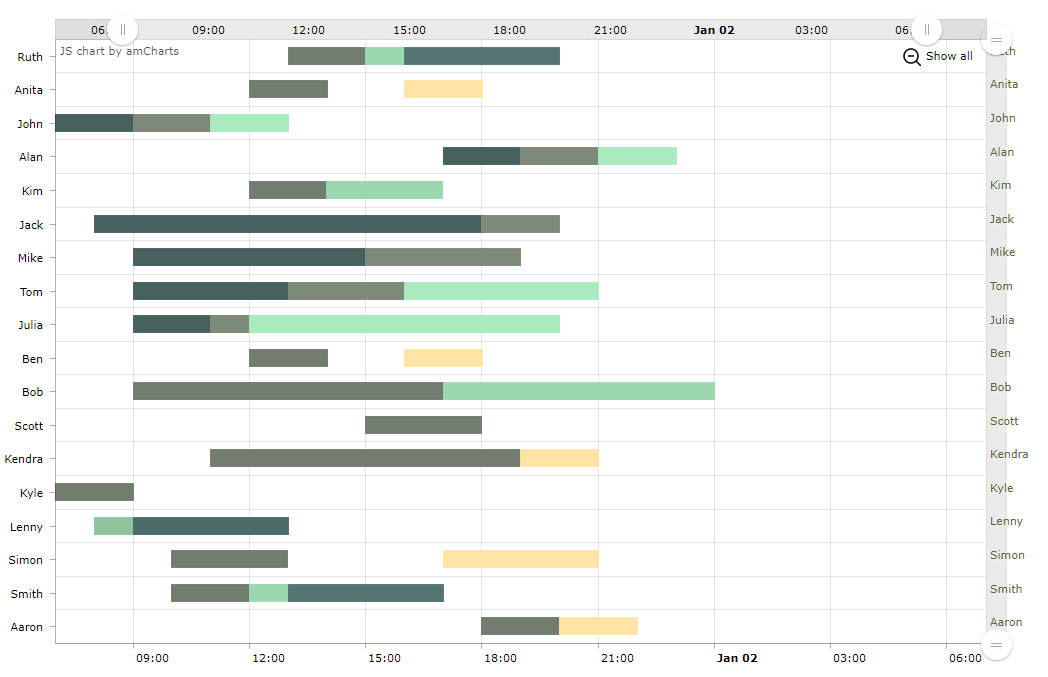

  • GanttChart can have a chart:valueScrollbar element for scrolling the value axis, while chart:chartScrollbar will be used for zooming the category axis.

    value scrollbar
    chart:valueScrollbar
    <chart:valueScrollbar autoGridCount="true"
                          color="BLACK"/>
    <chart:chartScrollbar autoGridCount="true"
                          color="DARKOLIVEGREEN"/>

cursor

An optional element adding a cursor to the chart. The cursor follows the mouse pointer and shows a tooltip with the value of the corresponding point on a chart.

cursor
chart:cursor
<chart:chartCursor cursorAlpha="1"
                   cursorColor="#258cbb"
                   cursorPosition="MOUSE"
                   limitToGraph="g1"
                   pan="true"
                   valueLineAlpha="0.2"
                   valueLineBalloonEnabled="true"
                   valueLineEnabled="true"
                   valueZoomable="true"/>

data

This is an optional element for data binding used mostly for prototyping.

export

This is an optional element that enables chart export. The default export implementation adds a floating Download button on the chart:

column line export
chart:export

guides

This element add horizontal/vertical guidelines.

guides
chart:guides
<chart:guides>
    <chart:guide category="2001"
                 dashLength="2"
                 fillAlpha="0.2"
                 fillColor="#CC0000"
                 inside="true"
                 label="fines for speeding increased"
                 labelRotation="90"
                 toCategory="2012"/>
    <chart:guide category="2016"
                 dashLength="2"
                 inside="true"
                 label="motorcycle fee introduced"
                 labelRotation="90"
                 lineAlpha="1"
                 lineColor="#CC0000"/>
</chart:guides>

legend

This element defines the chart legend, for example:

legend
chart:legend
<chart:guides>
    <chart:guide category="2001"
                 dashLength="2"
                 fillAlpha="0.2"
                 fillColor="#CC0000"
                 inside="true"
                 label="fines for speeding increased"
                 labelRotation="90"
                 toCategory="2012"/>
    <chart:guide category="2016"
                 dashLength="2"
                 inside="true"
                 label="motorcycle fee introduced"
                 labelRotation="90"
                 lineAlpha="1"
                 lineColor="#CC0000"/>
</chart:guides>

nativeJson

JSON configuration of the chart.

titles

This element adds axis titles on the chart.

titles
chart:titles
<chart:titles>
    <chart:title alpha="1"
                 bold="true"
                 color="DARKSLATEGREY"
                 size="20"
                 tabIndex="0"
                 text="Main title"/>
    <chart:title alpha="0.5"
                 color="SILVER"
                 size="12"
                 text="Subtitle"/>
</chart:titles>

responsive

This is a chart plugin that makes the chart responsive.

It enables scaling-down and -up chart visual features automatically in order to adjust the chart to the screen resolution changes. You can find more information on the responsive plugin on the AmCharts website.

The responsive element should contain the enclosed rules element where the rules of accommodation are defined. You can make the chart hide or show the legend, axis titles, guides, chart titles, zoom controls, move labels inside the plot area and so on:

<chart:responsive enabled="true">
    <chart:rules>
        <chart:rule maxWidth="400">
            <![CDATA[
            {
                "precision": 2,
                "legend": {
                "enabled": false
                },
                "valueAxes": {
                    "inside": true
                }
            }
            ]]>
        </chart:rule>
    </chart:rules>
</chart:responsive>

Programmatic Configuration

Configuring charts in a screen controller is performed following the same logic. You can configure a simple property, as well as a composite object set:

@Autowired
private PieChart pieChart;

@Subscribe
public void onInit(InitEvent event) {
    pieChart.setWidth("700px");
    pieChart.setTitleField("description")
            .setValueField("value")
            .setStartAngle(312)
            .setLegend(new Legend()
                    .setMarkerType(MarkerType.CIRCLE)
                    .setPosition(LegendPosition.RIGHT)
                    .setMarginRight(80))
            .addLabels(
                    new Label()
                            .setText("Sample Chart")
                            .setSize(26)
                            .setBold(true)
                            .setAlign(Align.CENTER),
                    new Label()
                            .setText("extra information")
                            .setAlign(Align.RIGHT))
            .setLabelTickColor(Color.GOLDENROD)
            .setColors(Arrays.asList(
                    Color.valueOf("#446493"),
                    Color.valueOf("#5E3D2C"),
                    Color.valueOf("#D0A557")))
            .setDataProvider(initDataProvider());
}

private DataProvider initDataProvider() {
    ListDataProvider dataProvider = new ListDataProvider();
    dataProvider.addItem(new MapDataItem(
            ImmutableMap.of("value", 75, "description", "Sky")));
    dataProvider.addItem(new MapDataItem(
            ImmutableMap.of("value", 7, "description", "Shady side of pyramid")));
    dataProvider.addItem(new MapDataItem(
            ImmutableMap.of("value", 18, "description", "Sunny side of pyramid")));
    return dataProvider;
}
